Honeycomb Geocell

Geocells are mainly made of HDPE (high-density polyethylene) or PP (polypropylene) sheets, which are strongly welded or riveted to form a mesh cell structure. It is flexible and can be retracted and stacked when transported

xinyingcailiao@gmail.com

+86 19953899723

Commodity name： Honeycomb Geocell

Product Introduction

Geocell is a three-dimensional network structure material made of polyethylene plastic sheets welded by high-strength ultrasonic waves. It uses local materials, sand, crushed stones, and soil as filling materials to form a composite material with a universal structure, achieving high bearing capacity. It can form a stable roadbed, and also plant grass on it, greening and stabilizing the slope.

Product Name	Geocell
Product Material	HDPE
Product Height	50/75/100/150/200mm
Welding Distance	330/356/400/445/450/500/545/600/660/712/800/900/1000
Product Color	Black, Green, Customized

Product Specifications

Serial Number	Test items		Unit	Geocell made of PP material	Geocell made of PE material
1	appearance			The cells should be flat, without bubbles or grooves
2	Tensile yield strength of cell sheets		MPa	≥23.0	≥20.0
3	Tensile strength of welded joints		N/cm	≥100	≥100
4	Tensile strength at the connection between cell groups	Format Sheet Edge	N/cm	≥200	≥200
5	Tensile strength at the connection between cell groups	Format slice middle	N/cm	≥120	≥120

Product Features

1, flexible, transport can be folded, the construction can be stretched into a network, filled with soil, gravel.

concrete and other loose materials, to form a strong lateral limit and large stifness of the structure.

2, light material, wear resistance, chemical stability, light oxygen aging resistance, acid and alkali resistance.

suitable for different soil and desert soil conditions.

3, high side limit and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed anddisperse the load.

4, change the geocell height, welding distance and other geometric dimensions to meet diferent engineeringneeds.

5,flexible, small transport volume, convenient connection, fast construction speed.

Packing Details

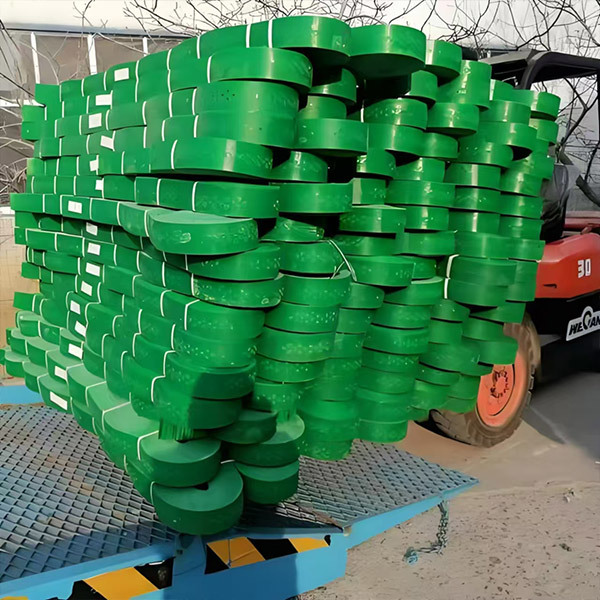

1. HDPE geocells are packaged on pallets and secured with cable ties and plastic wrap. or as your requested;

Warning：Keeping away from fire and high temperatures.
