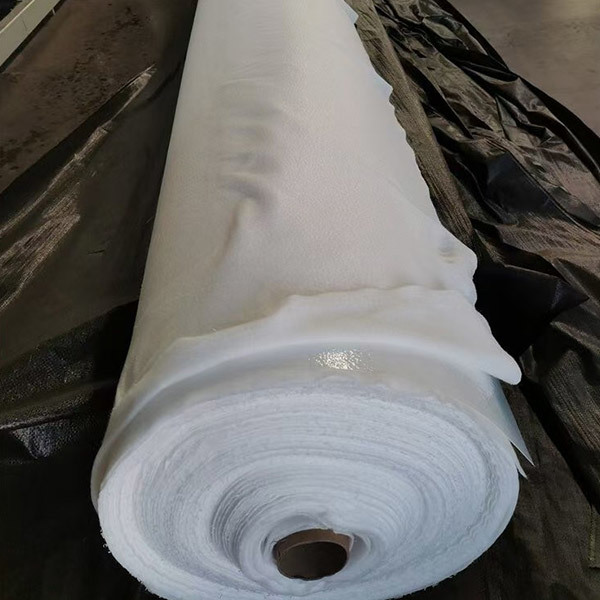

Polyethylene Composite Geomembrane
- Commodity name： Polyethylene Composite Geomembrane
Keyword:
Polyethylene Composite Geomembrane
- PRODUCT DESCRIPTION
-
Polyethylene composite geomembrane is a highly effective material with a wide range of applications.
This geomembrane is made from polyethylene, which offers excellent durability and chemical resistance. It can withstand exposure to various substances without deteriorating easily. The composite nature of the material enhances its overall performance. It is often engineered with additional layers or components to improve specific properties.
One of its major uses is in environmental protection. In landfill sites, for example, polyethylene composite geomembrane acts as a reliable barrier. It prevents the leakage of leachate, which is a liquid containing contaminants from the waste. This helps to protect the surrounding soil and groundwater from pollution.
In water - related applications, such as reservoirs and ponds, it is also invaluable. It can hold water in place by preventing seepage. This property is crucial for conserving water resources and maintaining proper water levels.
The geomembrane is also easy to install. It can be laid down relatively quickly and with minimal effort, depending on the scale of the project. Its flexibility allows it to conform to different terrains and surfaces, making it suitable for various construction and environmental projects.
Moreover, polyethylene composite geomembrane has a long service life. It can endure years of exposure to the elements and the stress of its intended applications. This makes it a cost - effective choice in the long run as it reduces the need for frequent replacement. In conclusion, polyethylene composite geomembrane is an essential material for projects where effective containment and protection are required.
Product Introduction
The composite geomembrane is divided into one cloth and one membrane and two cloth and one membrane, and the composite geomembrane can meet the needs of civil engineering such as anti-seepage, isolation, reinforcement and anti-cracking reinforcement in the construction of water conservancy, municipal, construction, transportation, subway, tunnel and other projects. Due to the selection of polymer materials and the addition of anti-aging agents in the production process, it can be used in unconventional temperature environments.
Features:
1. The width can reach six meters, compared with similar products with narrow width, it reduces the joints, reduces the project cost, shortens the construction period, and also reduces the hidden dangers caused by improper joint treatment.
2. Compared with the traditional cloth and membrane separation, the use of composite geomembrane improves the use effect, saves the project time, reduces the project cost, and the comprehensive benefits are obvious.
3. Good anti-aging performance. If it is buried and laid, the service life is longer.
Scope of application
1. Environmental protection and sanitation projects (such as domestic waste landfills, sewage treatment plants, toxic and harmful substances treatment sites).
2. Water conservancy and civil engineering (anti-seepage, plugging, reinforcement, seepage prevention and slope protection of canals, rivers, lakes, reservoirs and dams).
3. Municipal engineering (subway, underground engineering of buildings and roof reservoirs, roof garden seepage prevention, sewage pipe lining).
4. Landscaping (artificial lakes, ponds, pond lining, slope protection, etc.) of golf courses.
5. Traffic facilities engineering (foundation reinforcement of highways, seepage prevention of culverts).
Parameter
| Mass per unit area (g/m²) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
| commonly used specification | One cloth and one film | 150/0.25 | 200/0.3 | 300/0.3 | 300/0.4 | 300/0.5 | 300/0.5 | 00/0.6 |
| Two cloths and one film | 100/0.2/100 | 100/0.3/100 | 150/0.3/150 | 200/0.3/200 | 200/0.4/200 | 200/0.5/200 | 250/0.5/250 | |
| Breaking strength KN/m≥ | 5.0 | 7.5 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | |
| Elongation at break % | 30-100 | |||||||
| Tear strong KN ≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | |
| CBR Breaking Strength | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | |
| Vertical permeability coefficient cm/s | 10¹² | |||||||
| Hydrostatic pressure resistant to MpaKN≥ | 0.4-0.6 | 0.6-10 | ||||||
| illustrate | Special specifications, can be customized according to customer technical requirements | |||||||
Factory appearance
Shandong Xinying New Materials Co., Ltd. will be strong economic and technical strength, excellent product quality, casting China geo building materials new brand new image.
