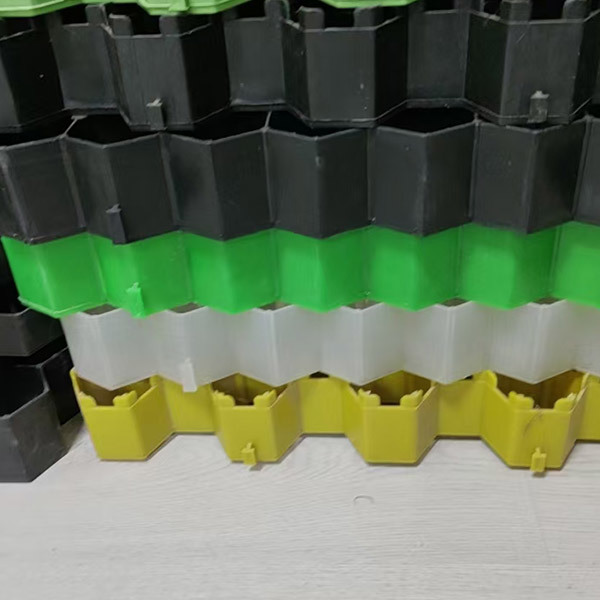

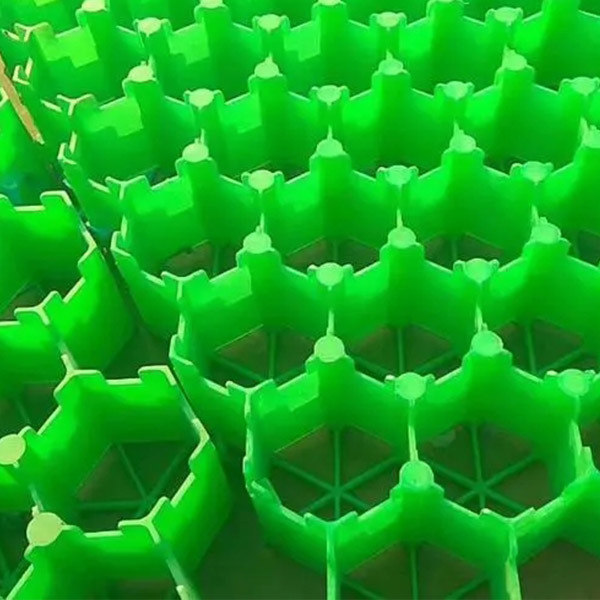

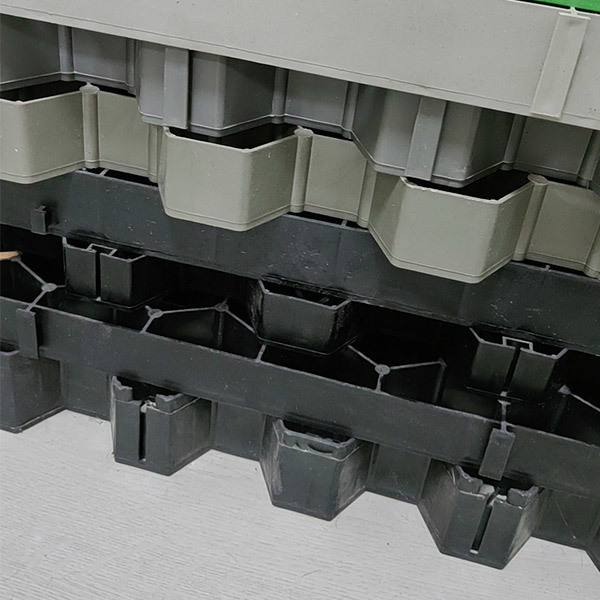

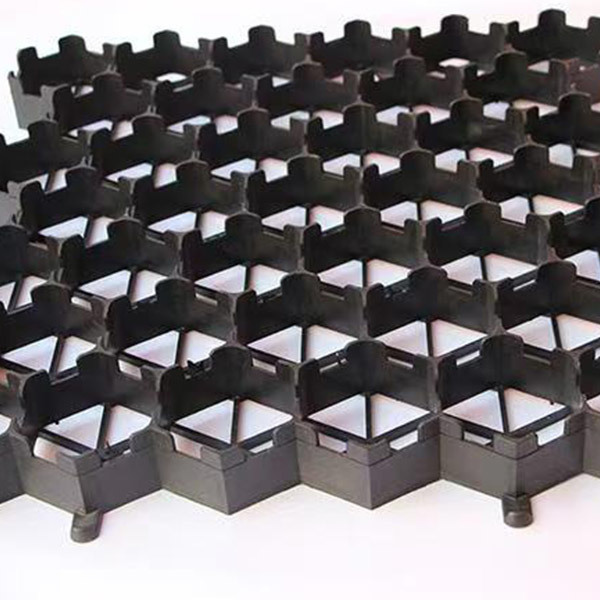

Grass Grid

Grass Grid uses modified high molecular weight HDPE as raw material, which is green and environmentally friendly and fully recyclable; It perfectly realizes the two-in-one lawn and parking lot, and the grass lattice is pressure-resistant, wear-resistant, impact-resistant, anti-aging, and corrosion-resistant, which improves the quality and saves investment; Unique flat plug lap joint, labor-saving, fast, adjustable expansion joint.

Features introduced
1. Complete greening: The grass grid provides more than 95% of the grass planting area, and the complete greening effect can absorb sound and dust, which significantly improves the quality and taste of the environment. (Reference: Concrete grass planting bricks have only 30% voids)
2. Save investment: Grass planting grid makes parking and greening functions in one, which can save the developer's valuable investment in the city where every inch of land is valuable.
3. Smooth and complete: the unique and stable flat plug-in lap joint of the grass planting grid makes the entire laying surface form a flat whole, avoiding local depressions, and the construction is extremely convenient. (Reference: Each concrete grass planting brick is independent, and the concrete cushion foundation must be poured to keep it flat)
4. High strength and long life: the grass planting grid adopts special materials with patented technology, and the compressive capacity is up to 200 tons/square meter, which is 32 tons/square meter greater than the fire climbing surface required by the specification.
5. Stable performance, anti-ultraviolet, acid and alkali corrosion, anti-wear pressure, weather resistance -40°C-90°C. (Reference: Concrete grass planting bricks are easy to crack and break during temperature changes and frost)
6. Excellent drainage: the gravel bearing layer provides a good water access function, which is convenient for the discharge of excess precipitation.
7. Protect the lawn: The gravel bearing layer provides a certain water storage function, which is conducive to the growth of the lawn, and the grass roots can grow to the gravel layer.
8. Green and environmental protection: the grass grid is safe and stable, recyclable, absolutely pollution-free, and comprehensively cares for the lawn.
9. Lightweight and saving grass planting lattice is 5 kg per square meter, extremely lightweight, quick installation, saving labor and shortening the construction period.
10. Common Sizes:500mm*500mm*38mm 500mm*500mm*48mm 500*500mm*68mm

Architectural features:
1. Environmental protection, non-toxic, pollution-free, impact-resistant, anti-aging, anti-ultraviolet
2. Good wear-resistant, corrosion-resistant, flame-retardant, and strong grass-planting function
3. Reduce ground reflection and ground heat radiation
4. Reduce ground sound wave transmission and reduce noise pollution
5. Reduce dust and purify the air
6. Rainwater naturally seeps, no soil loss, no water accumulation
7. Water, air and fertilizer are naturally circulated, and the soil layer is not compacted
8. Increase the green area · The construction is simple and lightweight
9. It can be freely combined and disassembled, and can be reused
10. Good load-bearing effect: it can bear more than 200T/㎡ weight

Basic processing
Grass lattice base treatment for parking spaces:
1. The foundation soil should be compacted in layers, and the compactness should reach more than 85%; If it belongs to the soft plastic-flow plastic silt layer, it is recommended to throw and fill the stone and roll it to compact.
2. Set up 150 thick sand and gravel cushion. The specific method is: 10% of medium coarse sand, 60% of 20-40 particle size gravel, and 30% of cohesive soil are mixed and mixed, flattened and rolled until compact.
3. Set up a 60-thick stable layer (doubles as a vegetative layer). The method of stabilizing layer is: 25% gravel with a particle size of 10-30, 15% medium coarse and fine river sand, 60% tillage soil and mixed with an appropriate amount of organic fertilizer, the three are mixed evenly, paved on the sand and gravel cushion, rolled and compacted, and can be used as the base layer of grass grid.
4. Sprinkle a little organic fertilizer on the base layer and artificially pave the grass grid. The external dimensions of the grass grid are designed according to the size modulus of the parking space, and generally do not need to be cut when paving; When the parking space has special shape requirements or there is a sewage manhole cover on the parking space, the grass planting grid can be tailored to meet the requirements of different shapes of the parking space.
5. Sprinkle planting soil in the groove of the grass planting grid and sweep it evenly into the grass planting grid hole with a broom, and the soil height is 5-10mm lower than the grass planting grid plane.
6. Spread turf or sow grass on top of the planting soil layer of the grass planting grid. When laying turf, the turf needs to be compacted on the planting soil. Watering and curing until the grass is alive can be parked.

For grass lattice base treatment in fire lanes:
1. Pave grass lattices on the fire lane, and the compactness of the foundation soil should meet the design requirements of the general concrete fire lane.
2. The design requirements of the gravel cushion and stone powder stabilization layer of the fire lane are also the same as those of the ordinary concrete fire lane.
3. Make an 80-thick layer of nutrient soil on top of the stone powder stabilization layer. The soil layer method is: 30% gravel with a particle size of 10-30, 15% medium coarse and fine river sand, 55% tillage soil and mixed with an appropriate amount of organic fertilizer, the three are mixed evenly, paved on the compacted stone powder stable layer, compacted, can be used as the base layer of grass planting.
4. Pave the grass lattice and plant grass on the grass planting lattice base.
5. It is worth noting that if the fire lane is used as the main passage for vehicles in ordinary times, due to the frequent and fast driving of vehicles, this is not conducive to the use of grass lattice and the normal growth of turf, but affects the greening rate and aesthetics, in this case, we recommend that the main vehicular traffic road still use concrete pavement. Only in the event of a firefighting emergency, the road surface where firefighting vehicles can enter is a grass-planted lattice pavement. In the same way, it is recommended that the access pavement of the parking lot be made of concrete, while the parking space should be planted with grass lattice.

For grass lattice base treatment for sidewalks:
1. Historical facts on the original basis.
2. Pave grass planting lattices on the compacted base soil.
3. Sprinkle planting soil in the groove of the grass planting grid and sweep it evenly into the grass planting grid hole with a broom, and the soil height is 5-10mm lower than the grass planting grid plane.
4. Lay turf on top of the grass grid. When laying turf, the turf needs to be compacted on the planting soil. Watering and curing can be used after the grass is alive.
Construction precautions
1. The gravel foundation is required to be tamped, the degree of compaction is considered to be the maximum bearing pressure, the surface is required to be smooth, and the drainage slope of 1%-2% is better. The seepage holes in the concrete foundation should be filled with pebbles or gravel and sand to prevent soil erosion.
2. Each grass grid has a link buckle, and the paving is interlocking. After the grass lattice pavement is completed, use a small roller or plate vibrator to press back and forth on the surface of the grass lattice, and the uneven places need to be trimmed until the surface of the grass lattice reaches the level.
3. It is recommended to use high-quality nutrient soil for the filling soil in the grass planting grid. When returning to the soil, it should be sprinkled with water to make the soil can precipitate, and the nutrient soil on the surface of the grass grid should be evenly swept into the grass grid hole with a bamboo broom, and the height of the soil layer should be 5-10mm lower than the plane of the grass grid.
4. The turf is generally made of Manila grass, which is resistant to trampling and easy to grow. When laying turf, a gap of about 20mm should be left and the paving should be staggered in a zigzag shape. After the turf is laid, it is watered thoroughly with water to make the turf soft, and then the grass roots are pressed into the grass planting grid with a small roller or plate vibrator (repeated many times) to make it easier for the grass roots to grow downward.
5. Stop the car for use after one month of maintenance; If the grass is constructed between November and March of the following year (dormant period), it should be maintained for two months before stopping.
6. During use or after the rainy season, if there is a small amount of planting soil erosion, you can evenly sprinkle some soil or sand from the surface of the lawn to fill the soil lost due to rainwater erosion.
7. The lawn needs to be mowed 4-6 times a year, weeds should be pulled out in time, fertilized, and watered frequently or equipped with automatic sprinkler equipment in the hot and dry season, and the necessary maintenance and management work should be done.
