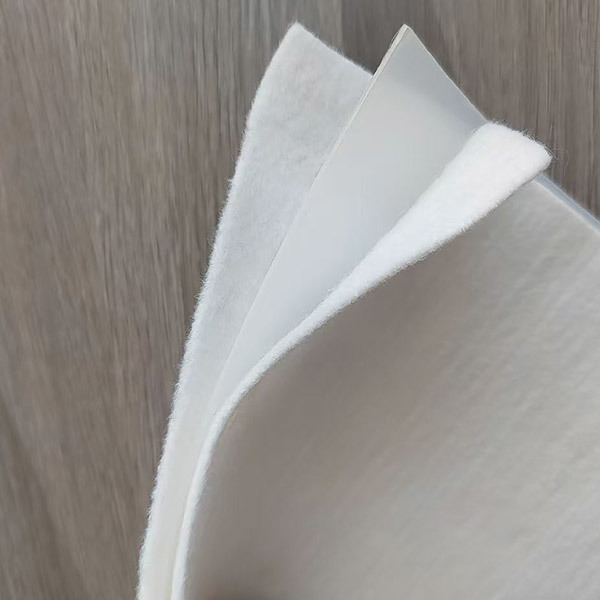

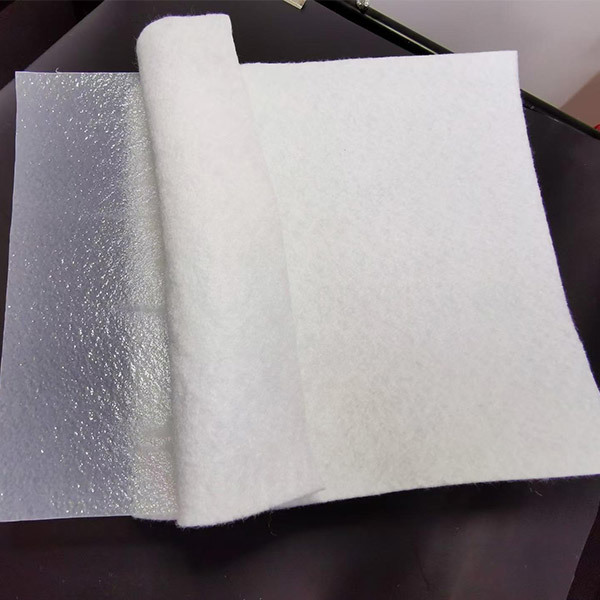

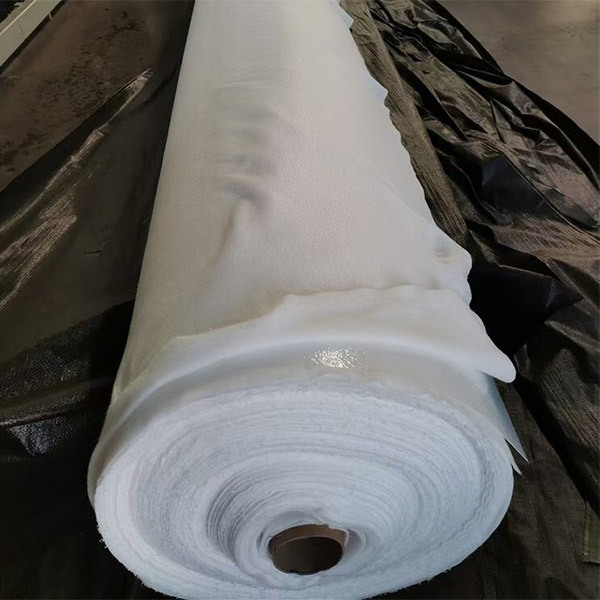

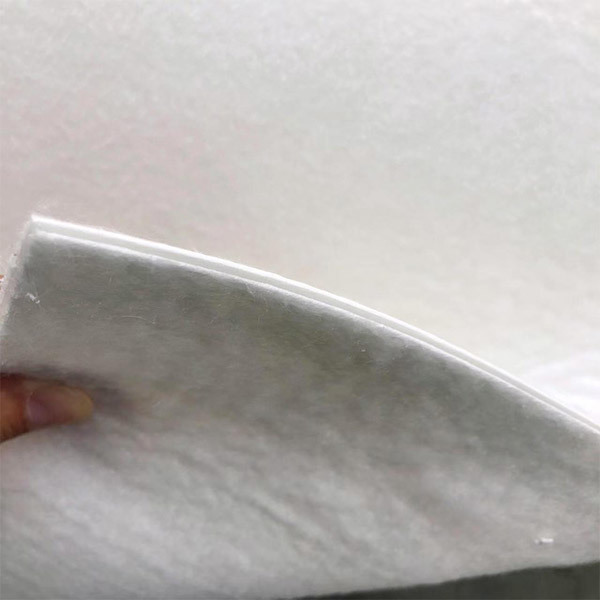

On-woven Composite Geomembrane

The width can reach six meters, compared with similar products with narrow width, it reduces the joints, reduces the project cost, shortens the construction period, and also reduces the hidden dangers caused by improper joint treatment.
  • Commodity name: On-woven Composite Geomembrane

Keyword:

On-woven Composite Geomembrane

  • PRODUCT DESCRIPTION

Product Introduction
The composite geomembrane is divided into one cloth and one membrane and two cloth and one membrane, and the composite geomembrane can meet the needs of civil engineering such as anti-seepage, isolation, reinforcement and anti-cracking reinforcement in the construction of water conservancy, municipal, construction, transportation, subway, tunnel and other projects. Due to the selection of polymer materials and the addition of anti-aging agents in the production process, it can be used in unconventional temperature environments.
Features:
1. The width can reach six meters, compared with similar products with narrow width, it reduces the joints, reduces the project cost, shortens the construction period, and also reduces the hidden dangers caused by improper joint treatment.
2. Compared with the traditional cloth and membrane separation, the use of composite geomembrane improves the use effect, saves the project time, reduces the project cost, and the comprehensive benefits are obvious.
3. Good anti-aging performance. If it is buried and laid, the service life is longer.
Scope of application
1. Environmental protection and sanitation projects (such as domestic waste landfills, sewage treatment plants, toxic and harmful substances treatment sites).
2. Water conservancy and civil engineering (anti-seepage, plugging, reinforcement, seepage prevention and slope protection of canals, rivers, lakes, reservoirs and dams).
3. Municipal engineering (subway, underground engineering of buildings and roof reservoirs, roof garden seepage prevention, sewage pipe lining).
4. Landscaping (artificial lakes, ponds, pond lining, slope protection, etc.) of golf courses.
5. Traffic facilities engineering (foundation reinforcement of highways, seepage prevention of culverts).

Parameter

Mass per unit area (g/m²) 400 500 600 700 800 900 1000
commonly used specification One cloth and one film 150/0.25 200/0.3 300/0.3 300/0.4 300/0.5 300/0.5 00/0.6
Two cloths and one film 100/0.2/100 100/0.3/100 150/0.3/150 200/0.3/200 200/0.4/200 200/0.5/200 250/0.5/250
Breaking strength KN/m≥ 5.0 7.5 10.0 12.0 14.0 16.0 18.0
Elongation at break % 30-100
Tear strong KN ≥ 0.15 0.25 0.32 0.40 0.48 0.56 0.62
CBR Breaking Strength 1.1 1.5 1.9 2.2 2.5 2.8 3.0
Vertical permeability coefficient cm/s 10¹²
Hydrostatic pressure resistant to MpaKN≥ 0.4-0.6 0.6-10
illustrate Special specifications, can be customized according to customer technical requirements

Factory appearance

Shandong Xinying New Materials Co., Ltd. will be strong economic and technical strength, excellent product quality, casting China geo building materials new brand new image.
